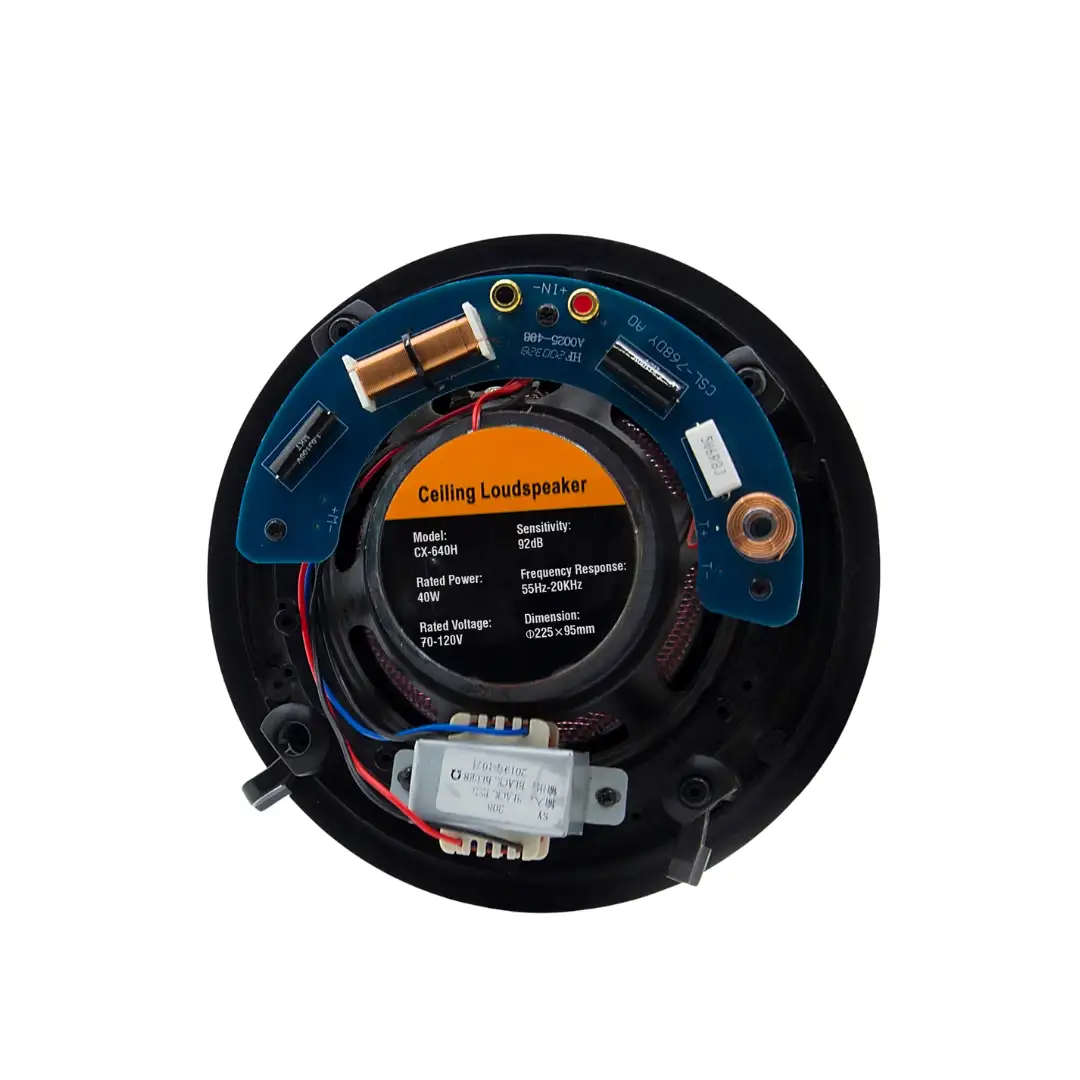

Ceiling Speaker CX-640H

Highlight Features

Ceiling Speaker CX-640H – 40W with Coaxial Silk Tweeter

The CX-640H is a professional-grade ceiling speaker built with a 6.5-inch woofer and a silk diaphragm coaxial tweeter, delivering rich bass and crystal-clear highs. Ideal for hotels, conference halls, restaurants, and premium sound systems.

Key Features:

• High-fidelity coaxial ceiling speaker with full-range performance and wide coverage.

• Rated Power: 40W RMS for powerful and consistent sound output.

• Power Taps: 5W / 10W / 20W / 40W – flexible configuration for various room sizes.

• Rated Voltage: 70V–120V constant voltage input.

• Case Material: Pure Virgin ABS for durability; Color: Black.

• Woofer: 6.5″ (165 mm) with Φ90×20 mm magnet, black-red hybrid woven cone for deep bass.

• Tweeter: Coaxial silk diaphragm tweeter for smooth high-frequency reproduction.

• Sensitivity: 92 dB for efficient and balanced sound.

• Frequency Response: 55Hz–20kHz, ensuring full, clear sound across all frequencies.

• Dimension: Φ225×95 mm; Install Hole: Φ200 mm.

Technical Specifications:

• Model: CX-640H

• Rated Power: 40W (RMS)

• Max Power: 40W

• Power Taps: 5W / 10W / 20W / 40W

• Rated Voltage: 70V–120V

• Case Material: Pure Virgin ABS

• Color: Black

• Woofer Size: 6.5″ (165 mm)

• Woofer Magnet: Φ90×20 mm

• Woofer Cone: Black-Red Hybrid Woven Pot

• Tweeter: Coaxial Tweeter (Silk Diaphragm)

• Dimension: Φ225×95 mm

• Install Hole: Φ200 mm

• Sensitivity: 92 dB

• Frequency Response: 55Hz–20kHz

• Package Dimension: 51×51×48.5 cm / 16 pcs
